Incubator Flora

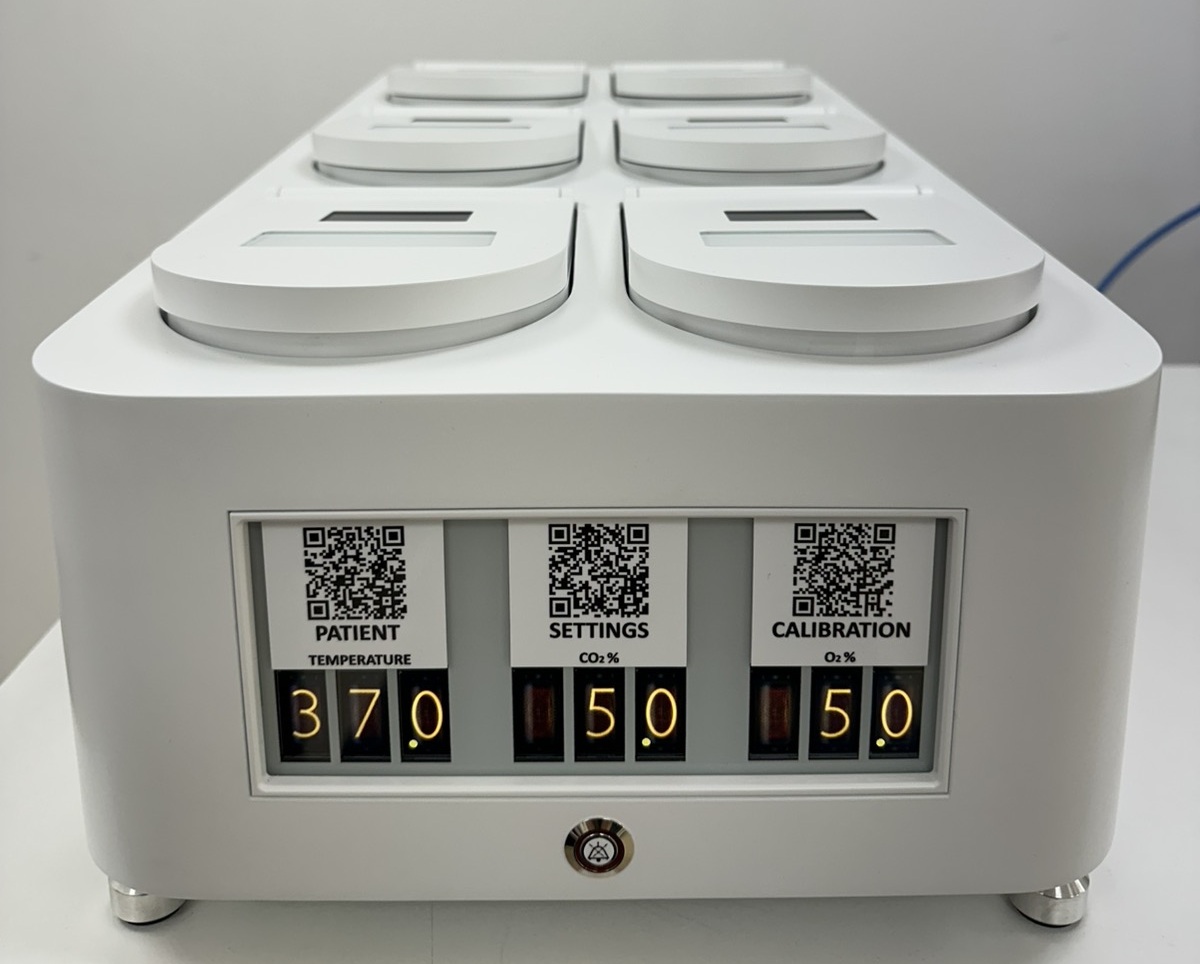

Flora – a new concept in bench top incubation…

Flora – a new concept in bench top incubation…
12 independant PID temperature regulations – for superior stability;
CO2 Gasmixing to any user selected set-point;
O2 regulation by N2 infusion for low oxygen conditions;
Continual gas cleaning inside the unit by HEPA and VOC filtration;
Continual sterilization of gas by UV-C light;
User interface designed for easy use and safety with interaction with the device done via an APP;
Foot print designed for lab space at a premium;
Full data logging;
7 gas sample ports for validation;
6 independant temperature sensors for validation;

Patient

  • One compartment one patient
  • Heated lid – PID control
  • Heated bottom – PID control
  • Stabile uniform temperature
  • Fast recovery of conditions
  • Easy opening and closing with a
    magnet lock and tracking of user
    openings in software

CO2

  • CO2 mixing for correct pH for all
    bicarbonate buffered mediumtypes. User set set-point
  • O2 control via N2 infusion for
    reducing the O2 level. Use a high
    purity N2 source.
  • Continual adjusting of gas
    concentrations
  • Opening one lid does not affect
    the compartments
    that are closed = true undisturbed
    incubation
  • Continual cleaning of both
    incoming and gas from source
    and inside the device.
    HEPA and VOC Filtering + UVC
    light sterilization
  • Recirculated gas flow – means
    low consumption
  • 7 Gas validation ports + inlet for
    CO2 + CO2

User interface

  • User interface via app
  • Scan function group and use. Fast
    and intuitive
  • Total documentation of patient
    flow and adjustments done
  • 6 E INK lid display for patient
    information

Parametric data

  • H: 210mm
  • W: 300 mm
  • L: 590 mm
  • Weight: 30kg
  • Power consumption: 280 W
  • 115/230 V 50/60Hz
    Temperature range
    25 – 40 °C
  • Gas consumption
    < 1 l/h CO2
    < 4 l/h N2
  • Gas pressure
    0,6 Bar (8m7 PSI)
  • CO2 range: 1,9 – 10 %
  • O2 range: 5 – 20 %
