A new concept in bench top time-lapse incubation;
Space for 14 patients (14 embryos each) on a 60 cm benchtop footprint;
Separate incubation of each patient in separate compartments;
Opening one lid does not affect the compartments that are closed = true undisturbed incubation;
635 mm LED light without cross effect. Only light in the compartment where images are acquired;
Image file output that can be easily transferred to AI analysis software or viewer software;
Easy setup without user input when starting timelapse;
Tracking of patients via app-based user interface;
28 PID temperature regulations for superior stability;
Units can stack side by side on table without a gap – so maximum space-saving;
CO2 and O2 regulation. Gas mixing according to user set set-point. NDIR CO2 sensor.

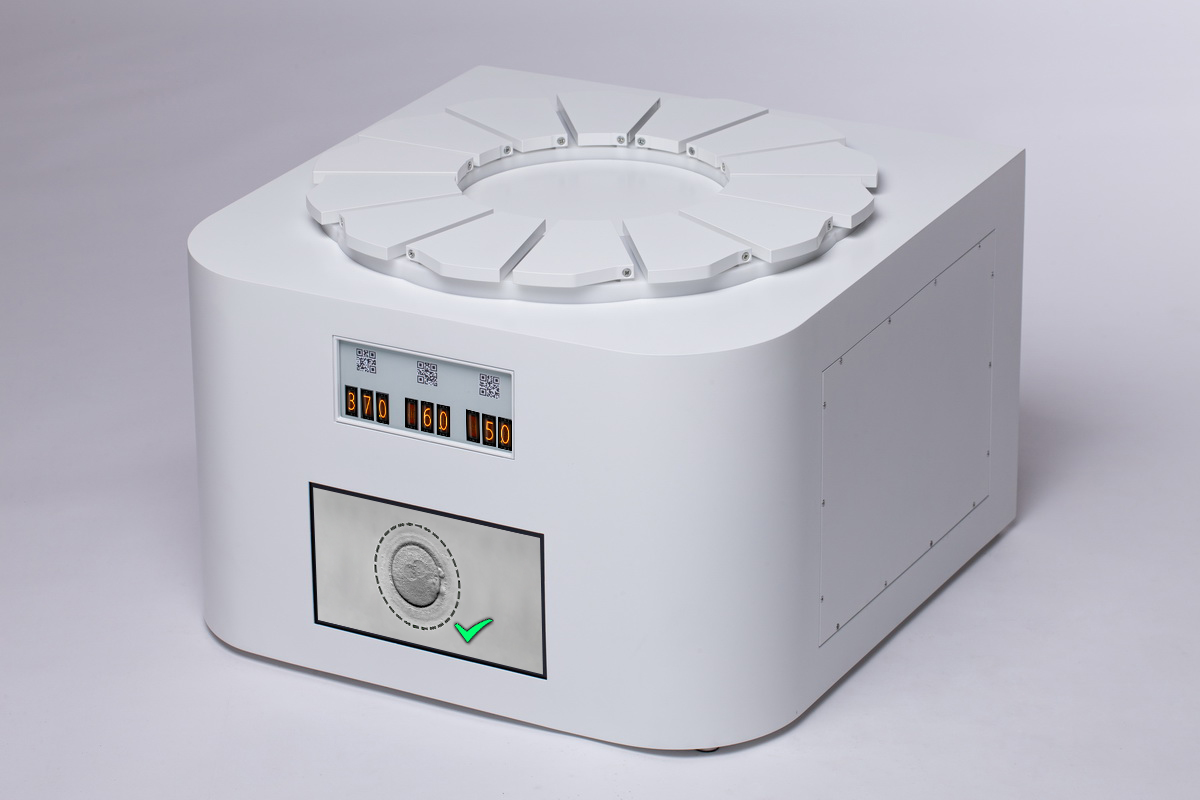

Incubator Flora TL
A new concept in bench top time-lapse incubation..
Patient
- One compartment one patient
- Heated lid – PID control
- Heated bottom – PID control
- Stable uniform temperature
- Fast recovery of conditions
- Easy opening and closing with a magnet lock
CO2
- CO2 mixing for correct pH for all bicarbonate
buffered medium types. User set-point - O2 control via infusion for reducing the O2 level. Use
high purity N2 source - Continual adjusting of gas concentrations
- Stable conditions in the closed compartments during
opening of one - Continual cleaning of both incoming and gas from
source and inside the device
HEPA and VOC Filtering + UVC light sterilization - Recirculated gas flow – means low consumption
15 Gas validation ports + inlet for CO2 + N2
User interface
- User interface via app
- Scan function group and use. Fast and intutive
- Total documentation of patient flow and adjustment
done - Patient identity display in main monitor view
- Time-lapse images generated by moving camera
microscope system. Embryos does not move around - Totalt seperation between incubation area and
microscope camera system - Nikon precision optics 20x
- LED 635 mm light with contrast system
- Autofocus and auto find
- Z stacking
- Image file easily shared with AI selection software or
to Viewer software
Parametric data
- H: 420 mm
- W: 600 mm
- L: 600 mm
- Weight: 70kg
- Power consumption: 280 W
- 115/230 V 50/60H
- Temperature range
25 – 40 °C - Gas consumption
< 1 l/h CO2
< 4 l/h N2 - Gas pressure
0,6 Bar (8m7 PSI) - CO2 range: 1,9 – 10 %
- O2 range: 5 – 20 %
